RGS-100HL
SIPHONING RAIN
GAUGE &
LOW LEVEL FLOW METER
 |
• PROVEN TECHNOLOGY REPLACES TIPPING BUCKET
• MAY BE USED AS A RAIN GAUGE OR A LOW LEVEL FLOW METER.
• EXTREMELY ACCURATE from 0 to 500 mm/hr of rain or 0 to 5.0 liters
/hr volume of water flow.
• AUTOMATIC INSTANTANEOUS COLLECTION & RESPONSE
• O/P = 1 MOMENTARY SWITCH CLOSURE FOR EVERY 0.2 mm of rain or 2.0 ml volume of
water flow.
• O/P
INTERFACES WITH ANY DATA LOGGER
• LIGHTWEIGHT & DURABLE
|
|
• 2 YEAR WARRANTY ON RAIN GAUGE
• 1 YEAR
WARRANTY ON ELECTRONICS
|
• LIFETIME CALIBRATION
• NO MOVING
PARTS
•WILL NOT CORRODE
|
OUR
#1 PRIORITY IS THE END USER
|
|
SPECIFICATIONS |
|
| Flow rate: |
0 –
500 mm/hr
0 – 19.68 inches/hour |
| Capacity: |
Unlimited |
| Accuracy: (Rain) |
RATE: 0 - 200 mm/hr ; +/- 2%
RATE: 200 - 300 mm/hr; +/- 5%
RATE: 300 – 500 mm/hr; -10% |
| Accuracy: (Water Flow) |
RATE: 0 – 2.0
liters/hr ; +/- 2%
RATE: 2.0 – 3.0 l/hr; - 5%
RATE: 3.0 – 5.0 l/hr; -10%
RATE: 0 – 2.0
liters/hr ; +/-
2%
|
| Power Supply: |
9 to 18 volts, UNREGULATED
350 to 1,200 micro amps |
| Output: |
1 momentary switch closure
per 0.2mm of rain ( 2.0 ml of
water flow).
OR
1 momentary switch closure
per 0.01" of rain. As per client request
|
Operating Temperature:
|
0 to 50 degrees Celsius,
0 to 125 degrees F
|
| Storage Temperature: |
-40 to 50 degrees C,
-40 to 125 degrees F
|
| |
|
Physical Dimensions
|
| Weight: |
2 kg (5 lbs) |
| Funnel Diameter: |
112 mm (4.425 in) |
| Diameter: |
120 mm (4.75 in.) |
| Length: |
420 mm (16.5 in.) |
| Construction: |
High density plastics |
| Mounting: |
Aluminum
& stainless steel universal joint bracket
|
| Screen: |
Keeps debris out |
| Level: |
Used to level the RGS - 100 |
| |
| Options |
| Heater: |
12
Vdc |
| Output Connector: |
Customers choice to fit their Data Loggers |
|
|
THEORY OF OPERATION:
The RGS – 100HL has no moving parts, so it NEVER needs routine
calibration. Its revolutionary design enables it to make accurate measurements
from 0 mm to 500 mm (0 " to 19.7") of rainfall or 0 to 5.0 liters of water
flow per hour.

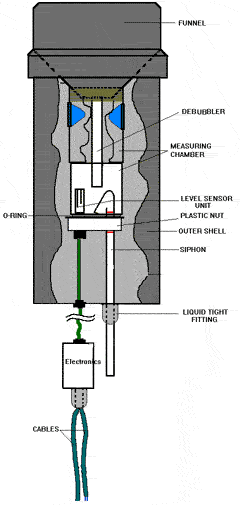

The principle is simple. Water, collected by the funnel, is routed to the
measuring chamber. A solid-state level sensor, connected to an electronic
circuit, outputs a contact closure for every 0.2 mm (2.0 ml volume of water
flow). When 1.2 mm (12 ml) of water is collected, it is siphoned out on to
the ground. The process repeats indefinitely. Because the siphoning action
takes approximately 1 second, and the electronics filters out false readings,
the gauge is very precise. The RGS – 100HL can be connected to the
contact closure input of any weather recorder.
|
